TV Panasonic P-Ten TC-14P10SB

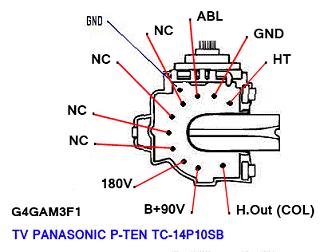

Berikut di bawah ini data pin out Flyback (FBT) G4GAM3F1
pin out : COL _ B+90V _ 180V _ NC _ NC _ NC _ NC _ ABL _ GND _ HT
Susunan dan keterangan data Pin :
1. Col
(H.Out / Colector Transistor Horizontal)
2. B+90V
(Tegangan dari Regulator)
3. 180V
(Video +180V/+200V)
4. NC
(Non conector / Tidak terhubung)
5. NC
(Non conector / Tidak terhubung)
6. NC
(Non conector / Tidak terhubung)
7. NC
(Non conector / Tidak terhubung)
8. ABL
(Automatic Bright Limiter / pengatur pembatas kecerahan secara otomatis)
9. GND
(Ground)
10. HT
(Heater)
Berikut sebagian component utama pada TV Panasonic P-Ten TC-14P10SB
Program Chroma
IC program chroma : TDA9381PS/N2/211338
Memori (Eeprom)
IC memori micro : 08
Vertikal
IC power vertikal : AN5539
Sound
IC power sound : AN7523
Horizontal
Flyback : G4GAM3F1
Tr. Final Hor : D2499
Tr. Driv Hor : C3941
Regulator
Final : STR W6654
SE 090V
RGB Matrick
Ic : TDA6107
