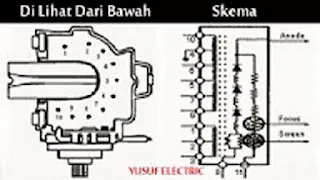

Berikut data pin out Flyback (FBT) dan persamaan Flyback (FBT) Televisi warna sekaligus sebagai alternatif pengganti jika nomor type yang asli tidak ada. Semoga bermanfaat.

AKARI - INTEL Television Color Flyback (FBT)

AKARI
Flyback :
FUY20B009 = 154-177B = 154-064P = FCK-14B047 = JF0501-1206 = JF0501-91802
154-374A = 6174V-6238L = FCM20B058 = FCM14047 = FCM20B009
6174V-6006D = 6174Z-8003A = 6174Z-8004R = FUY-20C009
Pin out : COL _ 180V _ B+110 _ GND _ 12V _ 24V _ 40V _ ABL _ HT _ AFC

AKARI
Flyback :
FUY 20C009
Pin out : COL _ 180V _ B+ _ GND _ NC _ 24V _ NC _ ABL _ HT _ AFC

AKIRA - FUJITEC Television Color Flyback (FBT)

Akira / Fujitec
Flyback :
14" BSC22-01N401
20" BSC24-01N40T
14" BSC25-1194
21" BSC25-4803T
14" BSC22-2007 (B+125V)
20" BSC25-N0803
Pin out : COL _ B+115V _ NC _ AFC _ GND _ HT _ ABL_ NC

Akira
Flyback :
14" JF0501-1901
20" BSC23-N0114
Pin out : COL _ B+115V _ GND _ 180V _ HT _ ABL _ GND _ 16V _ NC _ 24V

Akira (Vertikal +14V dan -14V)
Flyback :
JF0501-19959 = BSC25-0234A = BSC25-4004A = BSC25-N 0103 = BSC24-01N4004U
Pin out : COL _ B+115V _ +14V _ -14V _ GND _ HT _ AFC _ ABL _ NC _ 180V

Akira CT-29TK9AE
Flyback :
JF0501-2202
Pin out : COL _ B+125V _ AFC/NC _ -12V _ +12V _ GND _ HT _ ABL _ GND _ 180V

Akira Slim 29"
Flyback :
BSC29-N2477
Pin out : COL _ 180V _ B+130V _ GND _ NC(14V) _ 25V _ NC(GND) _ ABL _ HT _ INNER

Akira / Fujitec 21"
Flyback :
BSC25-05N2135H
BSC25-N0379 = BSC25 3604V
BSC22-68F03 = BSC25-N0449
Pin out : COL _ B+115V _ 24V _ AFC _ GND _ HT _ ABL _ 180V

Asatron Slim 21"
Flyback :
BSC25-N1089D
Pin out : COL _ B+115V _ +17V _ AFC _ GND _ HT _ ABL _ NC _ 180V _ -17V

AIWA Television Color Flyback (FBT)

Aiwa 14" / 20"
Flyback :
FTK 14B011
Pin out : COL _ B+115V _ 24V _ GND _ 180V _ HT _ ABL _ GND _ AFC _ 12V

AIWA
Flyback :
FTK 14B011
Pin out : COL _ B+ _ 24V _ GND _ 180V _ HT _ ABL _ GND _ AFC _ 15V

CHINA Television Color Flyback (FBT)

Tv China
Flyback :
BSC25-09N30D = BSC25-1003B = BSC27-5B027 = BSC29-0213A
BSC24-014001D = BSC25-N0321 = BSC25-N1534 = BSC25-N1634 = BSC25-Z1003
BSC25-Z2705 = BSC25-Z2706 = BSC25-N0313 = BSC25-F1125A = BSC24-01N4001M
BSC24-01N4009G = BSC25-3604TA = BSC25-Z2302 = BSC25-03DF = BSC25-1194
Pin out : H1 _ H _ H2 _ B+110 _ H3 _ H4 _ GND _ HT _ ABL _ AFC

CHINA BRAND
Flyback :
BSC24-014001D
BSC25-N0321
BSC25-N1534
BSC25-N1634
BSC25-Z1003
BSC25-Z2705
BSC25-Z2706
BSC25-N0313
Pin out : H1 _ H _ H2 _ B+110V _ H3 _ H4 _ GND _ HT _ ABL _ AFC

Tv China
Flyback :
BSC 22-01N40J
Pin out : COL _ 180V _ 115V _ GND _ 22V _ 16V _ ABL _ HT _ NC _ NC

Tv China
Flyback :
BSC 24-01N4009A
Pin out : COL _ NC _ B+ _ GND _ NC _ TEP _ NC _ ABL _ HT _ AFC

Tv China
Flyback :
BSC25-N0302ER
BSC22-0106 = BSC25-05N1418 = BSC25-05N2135C = BSC25-3504V = BSC25-N0112
Pin out : H _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ 180V

Tv China
Flyback :
BSC25-N0112
BSC22-0106 = BSC25-05N1418 = BSC25-05N2135C = BSC25-3504V = BSC25-0302ER
Pin out : H _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ 180V _ NP

Tv China 29"
Flyback :
BSC26-3606A
Pin out : COL _ B+115V _ NC _ AFC _ GND _ HT _ ABL _ TP1 _ TP2 _ TP3

Tv China 29"
Flyback :
BSC28-N2329 = BSC29-T6018N
Pin out : COL _ TP2 _ B+115V _ GND _ 180V _ NC _ NC _ ABL _ HT _ AFC

Tv China 29"
Flyback :
BSC26-N0670 = BSC27-KLX29
Pin out : TP1 _ COL _ TP2 _ B+ _ NC _ TP3 _ GND _ HT _ ABL _ 180V

Tv China 29"
Flyback :
JY 0301-0206
Pin out : COL _ B+ _ NC _ AFC _ GND _ HT _ ABL _ TP _ TP _ TP

Tv China
Flyback :
BSC25-Z603F
BSC25-4813A
BSC25-N1003A
BSC25-N0608
Pin out : TP1 _ COL _ TP2 _ B+115V _ TP3 _ TP4 _ GND _ HT _ ABL _ NC(180V)

Tv China
Flyback :
BSC24-014001D
BSC25-N0321
BSC25-N1534
BSC25-N1634
BSC25-Z1003
BSC25-Z2705
BSC25-Z2706
BSC25-N0313
BSC25-F1125A
Pin out : TP1 _ COL _ TP2 _ B+115V _ TP3 _ TP4 _ GND _ HT _ ABL _ AFC

Tv China
Flyback :
BSC25-2004PR
Pin out : COL _ B+115V _ NC _ AFC _ GND _ HT _ ABL _ NC _ TP1 _ TP2

Tv China
Flyback :
BSC24-01N4014K
BSC25-T1010A
Pin out : TP1 _ COL _ TP2 _ B+115V _ TP3 _ TP4 _ GND _ HT _ ABL _ 180V

Tv China
Flyback :
BSC24-2231HC
Pin out : COL _ B+115V _ 40V _ 14V _ GND _ AFC _ ABL _ HT _ 180V _ NC

Tv China
Flyback :
BSC25-09N30D
BSC24-014001D = BSC25-N0321 = BSC25-N1534 = BSC25-N1634 = BSC25-Z1003
BSC25-Z2705 = BSC25-Z2706 = BSC25-N0313 = BSC25-F1125A = BSC24-01N4001M
BSC24-01N4009G = BSC25-3604TA = BSC25-Z2302 = BSC25-03DF = BSC25-1194
BSC27-5B027 = BSC29-0213A
Pin out : H1 _ H _ H2 _ B+110 _ H3 _ H4 _ GND _ HT _ ABL _ AFC

Tv China
Flyback :
BSC25- N0302ER
BSC22-0106 = BSC25-05N1418 = BSC25-05N2135C = BSC25-3504V = BSC25-N0112
Pin out : H _ B+110V _ NC _ AFC _ GND _ HT _ ABL _ NP _ 180V

Tv China (Wansonic)
Flyback :
BSC25-T1010A
Pin out : TEP _ COL _ TEP _ B+ _ TEP _ TEP _ GND _ HT _ ABL _ 180V

Tv Changhong 14"
Flyback :
BSC-60T
Pin out : 180V _ COL _ AFC _ B+130V _ NC _ NC _ ACL _ GND _ NC _ HT

Tv Changhong 21"
Flyback :
BSC 65
Pin out : COL _ 180V _ B+ _ GND _ NC _ NC _ AFC _ HT _ GND _ ABL

Tv Changhong
Flyback :
BSC 65A
Pin out : COL _ B+ _ 180V _ GND _ NC _ NC _ 14,5V _ ABL _ HT _ AFC

Tv Changhong
Flyback :
BSC 60HZ
Pin out : COL _ B+ _ 180V _ GND _ 11V _ 16V _ 45V _ ABL _ HT _ AFC

Flyback :
BSC 22-01N401
BSC 22-01N402
BSC 22-01-06
BSC 22-0201
BSC 22-2314B
BSC 23-4404A
BSC 23-14H
BSC 24-14L
BSC 24-01N36
BSC 24-01N362
BSC 24-01N362B
BSC 24-08A
BSC 24-09G
BSC 25-48
BSC 25-4803
BSC 25-4803F
BSC 25-4803T
BSC 25-N0803A
BSC 25-Z601A
Pin out : COL _ B+ _ NC _ AFC _ GND _ HT _ ABL _ NC

Tv Daewoo, Mitsuba
Flyback :
DCF 1577
DCF 2077
FSA 16012M
Pin out : COL _ B+ _ AFC _ 125VBOOST _ 16,5V _ ABL _ 24V _ GROUND _ 180V _ HT

Tv Panda
Flyback :
BSC 24-2231HC
Pin out : COL _ B+ _ 46V _ 16V _ GND _ AFC _ ABL _ HT _ 180V _ NC

Tv China
Flyback :
BSC 24-08B
BSC 24-01N362
BSC 25-4803
BSC 25-N1616
BSC 25-0106
Pin out : COL _ B+ _ NC _ AFC _ GND _ HT _ ABL _ NC

Flyback :
BSC 25-T1010A
BSC 24-01N4014K
BSC 25-09N21A
BSC 25-09N20E
Pin out : TEP _ COL _ TEP _ B+ _ TEP _ TEP _ GND _ HT _ ABL _ 180V

Flyback :
BSC25-Z603F (Huijia 14-21 inch)
BSC27-Z603F (Huijia 14-21 inch)
BSC26-Z603N
BSC-Z1003B
Pin out : TEP _ COL _ TEP _ B+ _ TEP _ TEP _ GND _ HT _ ABL _ 180V

Flyback :
BSC26-N2121 (E)
Pin out : COL _ 180V _ B+ _ GND _ 12V _ 26V _ NC _ ABL _ HT _ AFC

Flyback :
BSC22-01-06
BSC25-48
BSC25-4803
BSC24-01N362
Pin out : COL _ B+ _ NC _ AFC _ GND _ HT _ ABL _ NC

Flyback :
MC-FBC-015
LCE CF0845
Pin out : COL _ B+ _ GND _ AFC _ 180V _ HT _ 25V _ 15V _ GND _ ABL

Flyback :
K 148 TC
Pin out : COL _ 180V _ B+ _ GND _ AFC _ 16V _ ABL _ HT _ NC _ NC

Flyback :
JF 9501-1206
Pin out : COL _ B+ _ 180V _ 16V _ 25V _ HT _ GND _ ABL _ AFC _ NC

Flyback :
BSC25-4813
BSC 25-N0301CY
BSC 25-1003A
BSC 25-Z603F
BSC 25-09N20ER
BSC 25-N0312A
BSC 25-T1010A
BSC 24-N40G1
BSC24-01N4001M
Pin out : TP _ COL _ TP _ B+ _ TP _ TP _ GND _ HT _ ABL _ 180V

Flyback :
BSC 25-4803T
BSC 25-4804TC
BSC 25-03F69F
BSC 25N1616T
BSC 25-03P79
BSC 25-N0449
BSC 24-01N36
BSC 23-N0124R
BSC 22-01016H
BSC 25-0236
BSC 25-03P79
BSC 25-N0803A
BSC 22-N65T
BSC 25-0251
BSC 25-3604V
Pin out : COL _ B+ _ NC _ AFC _ GND _ HT _ ABL _ TP

Flyback :
BSC 24-01N4014K (china)
BSC 25-01N4010GA (14")
BSC 25-05N2110A
BSC 25-0909
BSC 25-09N20E
BSC 25-09N21A
BSC 25-1003A
BSC 25-1194D024 (14")
BSC 25-2108A
BSC 25-4813P (cina multy)
BSC 25-N1003A-4-R (21")
BSC 25-T1010A
BSC 25-Z603F (21")
BSC 26-0221 (29")
Pin out : TP _ COL _ TP _ B+ _ TP _ TP _ GND _ HT _ ABL _ 180V

Etron
Flyback :
154-138K
154-182H
Pin out : 180V _ NC _ COL _ AFC _ B+ _ 43V _ ABL _ GND _ 12V _ HT

Flyback :
FCK 1411E10A
Pin out : 180V _ COL _ NC _ B+ _ NC _ 24V _ ABL _ GND _ 15V _ HT

Solitron
Flyback :
JF 0208-0208C
Pin out : COL _ B+ _ GND _ 185V _ HT _ ABL _ GND _ 15V _ AFC _ 24V

DETRON Television Color Flyback (FBT)

TV DETRON
Flyback :
14" 154-164F
20" 154-165D
20" JF0501-1212
Pin out : 24V _ 14V _ B+115V _ HT _ AFC _ ABL _ GND _ 180V _ NC _ COL

DIGITEC Television Color Flyback (FBT)

TV DIGITEC (Ninja)
Flyback :
JF0501-3210
Pin out : COL _ B+115V _ GND _ 180V _ NC _ HT _ 24V _ ABL _ 14V _ AFC

FUJI ELECTRIC Television Color Flyback (FBT)

SIERA, FUJI ELECTRIC
Flyback :
154-279C
Pin out : COL _ B+135V _ 200V _ GND _ GND _ 25V _ 16V _ ABL _ HT _ NC

Flyback :
CF 0854
CF 0582
Pin out : COL _ B+ _ GND _ AFC _ 185V _ HT _ 25V _ 15V _ GND _ ABL

FUJI ELECTRIC
Flyback :
FSA 28027M
Pin out : COL _ NC _ NC _ B+115V _ 12V _ ABL _ 25V _ GND _ 185V _ HT

Flyback :
154-189C
154-277C
FCM 20B027
Pin out : COL _ B+ _ 180V _ 14V _ 22V _ HT _ GND _ ABL _ AFC _ NC

Flyback :
FCK 14A028
Pin out : NC _ B+ _ 14V _ 24V _ HT _ GND _ ABL _ 180V _ B+ _ COL

FUJITEC Television Color Flyback (FBT)

FUJITEC LAMA
Flyback :
BSC22-231H
JF0501-1903
FCM14A032
KFS 60844
Pin out : COL _ B+115V _ 180V _ 16V _ 24V _ HT _ GND _ ABL _ AFC _ NC

FUJITEC
Flyback :
BSC 22-2314H
Pin out : COL _ B+ _ 180V _ 15V _ 24V _ AFC _ GND _ ABL _ NC _ NC

Flyback :
CF 0801
Pin out : COL _ B+ _ 180V _ 15V _ 24V _ HT _ GND _ ABL _ NC _ NC

GOLDSTAR, LG, INTEL Television Color Flyback (FBT)

GOLDSTAR, LG, INTEL
Flyback :
154-064P (goldstar14")
154-177B (goldstar21")
FCK-14B047 (akari14")
Pin out : COL _ 180V _ B+ _ GND _ 16V _ 24V _ 40V _ ABL _ HT _ AFC

Flyback :
6174Z-8005C (LG 20")
Pin out : COL _ 180V _ B+ _ GND _ NC _ 24V _ GND _ ABL _ HT _ AFC

Flyback :
154-064G (goldstar14")
154-177E untk (goldstar20")
Pin out : COL _ 180V _ B+(92V) _ Boost Up _ 24V _ 12V _ GND _ ABL _ HT _ AFC

Flyback :
154 - 132A (intel)
154 - 132C
6174V - 600H (LG 21")
6174Z - 6040C (LG 21")
BSC 23 - N0107 (LG 14")
Pin out : COL _ 40V _ 16.5V _ HT _ GND _ B+ _ 180V _ GND _ ABL _ 40V

Flyback :
154 189 C
154 189 H
154 277 C
BSC 22-2314 H
CF 0801-3701
FCM 20B027
Pin out : COL _ B+ _ 180V _ 16V _ 24V _ HT _ GND _ ABL _ AFC _ NC

HITACHI Television Color Flyback (FBT)

HITACHI FUJIAN
Flyback :
BSC25-0820
Pin out : COL _ B+115V _ NC _ NC _ 25V _ 12V _ ABL _ HT _ GND _ 180V

JVC Television Color Flyback (FBT)

TV JVC
Flyback :
BSC25-0262
Pin out : COL _ B+115V _ AFC _ NC _ 24V _ GND _ HT _ ABL _ 180V _ GND

JVC Model AV20NX
Flyback :
21" JF0501-3241
21" QQ189-001
Pin out : COL _ B+115V _ AFC _ -12V _ +12V _ GND _ HT _ ABL _ 180V _ GND

JVC Model (AV-1438)
Flyback :
QQH0132-001
Pin out : COL _ B+ _ 40V _ NC _ 25V _ GND _ HT _ ABL _ 180V _ GND

TV JVC Model (AV-14FT)
Flyback :
QQH0072-001
Pin out : COL _ B+115V _ 40V/ H.PL_ NC _ 25V _ GND _ HT _ ABL _ 180V _ GND

KONKA Television Color Flyback (FBT)

TV KONKA Model P 21TS33
Flyback :
BSC25-05N2158A
BSC25-T1010A
Pin out : TP1 _ COL _ TP2 _ B+115V _ TP3 _ TP4 _ GND _ HT _ ABL _ 180V

TV KONKA
Flyback :
14" BSC25-2023S
14" BSC25-0106
21" BSC25-2666S
21" BSC25-0111
Pin out : COL _ 180V _ B+115V _ GND _ AFC _ 14V _ ABL _ HT _ NC _ NC

Flyback :
21" BSC25-0146
Pin out : COL _ 180V _ B+115V _ GND _ NC _ NC _ ABL _ HT _ GND _ AFC

Flyback :
BSC 25-0106
BSC 25-2678S
JF 0501-19188
Pin out : COL _ 180V _ B+ _ GND _ AFC _ 16V _ ABL _ HT _ NC _ NC

LG - GOLDSTAR Television Color Flyback (FBT)

TV LG Super Slim 21FL1RG
Flyback :
EBJ34806707
Pin out : COL _ 180V _ B+115V _ GND _ NC/INNER _ 26V _ NC _ ABL _ HT _ AFC

TV LG 29” Super Slim 29FS4RL
Flyback :
BSC 26-N2138 / BSC 26-N2141
Pin out : COL _ B+115V _ +14V _ -14V _ 200V _ GND _ INNER _ 28V/NC _ ABL _ HT

TV LG Super Slim 21FS4RK
Flyback :
6174V-6006V
BSC25-N1651
Pin out : COL _ 180V _ B+110V _ GND _ NC/12V _ 26V _ NC _ ABL _ HT _ AFC

TV LG 29” Super Slim
Flyback :
BSC28-N2234
Pin out : COL _ B+ 115V _ +14V _ -14V _ 200V _ GND _ NC _ 28V _ ABL _ HT

TV LG 21" FLAT/SUPER SLIM
Flyback :
6174V-6006M
Pin out : COL _ B+ 115V _ +14V _ -14V _ 180V _ GND _ NC _ NC _ ABL _ HT

TV LG
Flyback :
6174Z-8005C
Pin out : COL _ 180V _ B+110V _ GND _ NC _ 24V _ GND _ ABL _ HT _ AFC

TV LG Model RD-21CC21V
Flyback :
6174V-6002U
BSC 26-N2121(N)
Pin out : COL _ 180V _ B+110V _ GND _12V _ 26V _ NC _ ABL _ HT _ AFC

TV LG 21" SUPER SLIM
Flyback :
BSC24-3366J
6174V-6006H
Pin out : COL _ 180V _ B+115V _ GND _ NC _ 24V _ NC _ ABL _ HT _ AFC

TV LG 21" SUPER SLIM & PEARL BLACK
Flyback :
BSC25-N0329
BSC25-N1651
Pin out : COL _ 180V _ B+115V _ GND _ NC _ 26V _ INNER _ ABL _ HT _ AFC

TV LG 14" ULTRA SLIM
Flyback :
BSC25-N0874
BSC25-N0883
Pin out : COL _ 180V _ B+115V _ GND _ NC _ 28V _ NC _ ABL _ HT _ AFC

TV LG (Neo Cinemaster)
Flyback :
6174Z-6040C
BSC23-N0107
Pin out : COL _ 180V _ B+110V _ GND _ -14V _ +14V _ GND _ ABL _ HT _ AFC

TV LG Soundmax Plus (CF-14D60)
Flyback :
6174Z-6040C
Pin out : COL _ 180V _ B+110V _ GND _ -14V _ +14V _ GND _ ABL _ HT _ AFC

TV LG (Flatron/Dll)
Flyback :
6174V-6006W
BSC25-N0352
Pin out : COL _ 180V _ B+110V _ GND _ 14V/NC _ 24V _ NC _ ABL _ HT _ AFC

TV LG / Gold Star (CA-14G60)
Flyback :
154 - 064 P
154 - 177 B
Pin out : COL _ 180V _ B+110V _ GND _ 16V _ 24V _ 40V _ ABL _ HT _ AFC

TV LG
Flyback :
6174V-6002U
6174V-8005C
Pin out : COL _ 180V _ B+110V _ GND _ NC _ 24V _ NC _ ABL _ HT _ AFC

LG Chasis MC-994A
Flyback :
BSC26-N2119
TFB4122BD
TFB4125CH
6174V-6002G
Pin out : H _ 180V _ B+110V _ GND _ NC _ 24V _ GND _ ABL _ HT _ AFC

LG / GOLDSTAR / AKARI / INTEL
Flyback :
154-177B
154-064P
154-374A
6174-8004A
6174Z-8003A
6174Z-8004R
6174Z-6040X
6174V-6238L
6174V-6006D
FCK-14B047
FCM 20B058
FCM 20B009
FUY 20B009
FUY 20C009
JF0501-1206
JF0501-91802
MF6549
Pin out : COL _ 180V _ B+115V _ GND _ 16V _ 24V _ 40V _ ABL _ HT _ AFC

Goldstar Lama
Flyback :
154-064G
154-177E
Pin out : COL _ 180V _ 92V _ 125VBOOST _ 24V _ 12V _ GND _ ABL _ HT _ AFC

LG (TURBO SWING 21")
Flyback :
6174Z-6040C
Pin out : COL _ 180V _ B+115V _ GND _ -14V _ +14V _ NC _ ABL _ HT _ AFC

Flyback :
154-177E
Pin out : COL _ 180V _ B+90V _ BOOST-UP _ 25V _ 12V _ GND _ ABL _ HT _ AFC

LG 14"/20"
Flyback :
BSC26-4482
6174-6006E
6174Z-6040C
Pin out : COL _ 185V _ B+115V _ GND _ -14V _ +14V _ GND/NC _ ABL _ HT _ AFC

LG (FLAT _ SUPER SLIM)
Flyback :
21" 6174V-6006H
21" BSC24-3366J
6174913002A
Pin out : COL _ 180V _ B+115V _ GND _ NC _ 24V _ NC _ ABL _ HT _ AFC

LG 29"
Flyback :
6174Z-5003A
BSC28-N2334
Pin out : COL _ B+115V _ +14V _ -14V _ 180V _ GND _ NC _ 28V _ ABL _ HT

LG ULTRA SLIM
Flyback :
29" BSC26-N2138
Pin out : COL _ B+115V _ +14V _ -14V _ 180V _ GND _ INNER _ 26V _ ABL _ HT

TV LG
Flyback :
6174-6040 C
Pin out : COL _ 180V _ B+ _ GND _ -14V _ +14V _ GND _ ABL _ HT _ AFC

Flyback :
FCK-14B047
Pin out : COL _ 180V _ B+ _ GND _ 16V _ 24V _ 40V _ ABL _ HT _ AFC

Flyback :
154 189H
154 277C
FCM 20B027
Pin out : COL _ B+ _ 180V _ 16V _ 24V _ HT _ GND _ ABL _ AFC _ NC

Flyback :
154-132A
154-132C
Pin out : COL _ 40V _ 16.5V _ HT _ GND _ B+ _ 180V _ GND _ ABL _ 40V

LG Pearl Black
Flyback :
BSC 25-N0363
EBJ34806707
Pin out : COL _ 180V _ B+115V _ GND _ INNER _ 26V _ NC _ ABL _ HT _ AFC

PANASONIC Television Color Flyback (FBT)

TV Panasonic (New Gold)
Flyback :
TLF 4N051
TLF 4N052
TLF 46508
Pin out : COL _ B+90V _ NC _ 24V _ HT _ 180V _ GND _ GND (R2W 1 OHM) _ 16V _ ABL

TV Panasonic Hyper Band TC-14S33
Flyback :
TLF 4N051
TLF 4N052
TLF 46508
Pin out : COL _ B+90V _ NC _ 24V _ HT _ 180V _ GND _ GND (R2W 1 OHM) _ 16V _ ABL

TV Panasonic TC-21FG21JG
Flyback :
BSC 27-0101KREV-02
Pin out : COL _ B+140V _ NC _ +14V _ GND _ HT _ GND _ ABL _ -14V _ 180V

TV Panasonic P-Ten TC-14P10SB
Flyback :
G4GAM3F1
Pin out : COL _ B+90V _ 180V _ NC _ NC _ NC _ NC _ ABL _ GND _ HT

TV Panasonic CATV HYPER-BAND TC-20S10MQ
Flyback :
ZTFN33OO1A
Pin out : COL _ B+140V _ 180V _ NC _ NC _ NC _ NC _ ABL _ GND _ HT

TV PANASONIC (Top Dome)
Flyback :
TLF 15626 F
Pin out : COL _ B+140V _ GND _ NC _ 24V _ HT _ 180V _ ABL _ NC _ NC

TV PANASONIC (TC-2088MNB)
Flyback :
G4GAM3F2
Pin out : COL _ B+90V _ 180V _ NC _ NC _ NC _ NC _ ABL _ GND _ HT

TV Panasonic (Quintrix F Series)
Flyback :
G4GAM3F21
Pin out : COL _ B+ 90V _ 180V _ NC _ NC _ NC _ NC _ ABL _ GND _ HT

TV PANASONIC
Flyback :
ZTFN82014B
Pin out : COL _ B+140V _ NC _ +16V _ GND _ HT _ GND _ ABL _ -16V _ 180V

Flyback :
G4GAM3F2
Pin out : COL _ B+90V _ 180V _ NC _ NC _ NC _ NC _ ABL _ GND _ HT

PANASONIC (Alpha Gold)
Flyback :
TLF 14695F
TLF 15610 F
TLF 15611 F
KFS60844
Pin out : COL _ B+ _ GND _ PS SINK - _ 25V _ HT _ 180V _ ABL _ NC _ PS SINK +

PHILIPS Television Color Flyback (FBT)

TV PHILIPS
Flyback :
JF0501-9185 (29")
BSC25-N2319
BSC25-N2911
Pin out : COL _ B+125V _ 180V _ AFC _ HT _ 8V _ 12V _ ABL _ 45V _ GND

POLYTRON Television Color Flyback (FBT)

TV Polytron U-Slim (XBR) PS 52UV60BM
Flyback :
BSC 25-0223N
Pin out : COL _ B+115V _ GND _ 180V _ NC _ HT _ NC _ ABL _ +12 _ -12V

TV Polytron Diva XBR PS 52SV60
Flyback :
JF0501-19577
Pin out : COL _ B+115V _ GND _ +Vid/180V _ +Vid/200V _ HT _ NC _ ABL _ +12 _ -12V

TV Polytron U-SLIM (PS 52UV03)
Flyback :
JF0501-19587
Pin out : COL _ B+115V _ GND _ NC _ 180V _ HT _ NC _ ABL _ +12 _ -12V

TV Polytron SLIM (HBEE-008A DN21A845 M01R1)
Flyback :
JF0501-19587
Pin out : COL _ B+115V _ GND _ NC _ 180V _ HT _ NC _ ABL _ +12 _ -12V

TV Polytron (MX Minimax) HYPERBAND
Flyback :
BSC59G1
Pin out : COL _ B+115V _ GND _ NC _ 180V _ HT _ NC _ ABL _ +12V _ -12V

TV Polytron (MX Minimax)
Flyback :
DST2010-D91
Pin out : COL _ B+115V _ GND _ NC _ 180V _ HT _ NC _ ABL _ +12V _ -12V

TV POLYTRON (Slim) DIVA XBR
Flyback :
JF0501-19587
Pin out : COL _ B+115V _ GND _ NC _ 180V _ HT _ NC _ ABL _ +12 _ -12V

TV Polytron (PN 14323KFA6)
Flyback :
FCM-14B014N
Pin out : COL _ B+115V _ GND _ 180V _ NC _ HT _ NC _ ABL _ +12V _ -12V/AFC

TV POLYTRON (29 inc AV3)
Flyback :
FFA 97018 L
Pin out : COL _ B+140V _ GND _ 180V _ NC _ HT _ NC _ ABL _ +12V _ -12V

POLYTRON / DIGITEC
Flyback :
FTK-21R011UN
JF0501-19577
JF0501-19584
JF0601-19577
FCM-20B061N
Pin out : COL _ B+115V _ GND _ NC _ 180V _ HT _ NC _ ABL _ +12V _ -12V

POLYTRON
Flyback :
Pin out : COL _ B+ _ GND _ +VID _ +VID _ HT _ NC _ BCL _ +12V _ -12V/HSINC

Digitec, Polytron
Flyback :
FCK 14A006
FCM 2015HE
FCM 14A032
KFS 60844A
Pin out : COL _ B+ _ ABL _ 24V _ HT _ 16V _ 180V _ GND _ NC _ NC

Flyback :
FCM 14B014N
FCM 20B061N
JF 0601-19577
Pin out : COL _ B+ _ GND _ 200V _ NC _ HT _ NC _ ABL _ +12V _ -12V

Flyback :
JF0501-195913
FTK-21R011UN
Pin out : COL _ B+115V _ GND _ 180V _ NC _ HT _ 25V _ BCL _ 12V _ AFC

POLYTRON U-SLIM (PS30UV25BM)
Flyback :
FUH 29VH04
Pin out : COL _ B+135V _ GND _ 185V _ NC _ HT _ NC _ BCL _ +12V _ -12V

POLYTRON 29"
Flyback :
FUH29VH02
Pin out : COL _ B+135V _ GND _ 185V _ NC(16V) _ HT _ NC _ ABL _ +12V _ -12V

POLYTRON (MX5262RF/Zepelin)
Flyback :
JF 0501-19539
Pin out : COL _ B+115V _ GND _ 185V _ NC _ HT _ 25V _ ABL _ 12V _ Hpulse

POLYTRON LAMA
Flyback :
FCK 14A006
FCM2015H
FTK21R002
Pin out : NC _ NC _ GND _ 180V _ 16V _ HT _ 24V _ ABL _ B+115V _ COL

Flyback :
FK 1411L01
FCM 14A025
Pin out : COL _ BOOST-UP _ ABL _ B+ _ GND _ 180V _ 24V _ HT _ AFC _ 16.5V

Flyback :
FCK 14A006
FCM 2015HE
FCM 14032
Pin out : C0L _ B+ _ ABL _ 24V _ HT _ 16V _ 180V _ GND _ NC _ AFC

Flyback :
FCG 2045 BL
Pin out : AFC _ 16.5V _ HT _ BOOST-UP _ B+83V _ GND _ NC _ COL _ ABL _ 180V _ 24V

RCA Television Color Flyback (FBT)

RCA
Flyback :
6174Z-8006A
Pin out : B+110V _ COL _ 6.5V _ GND _ HT _ ABL _ -12V _ GND _ 180V _ +12V

SAMSUNG Television Color Flyback (FBT)

TV SAMSUNG (FLAT)
Flyback :
FOK 14B001
Pin out : COL _ NC _ B+125V _ NC _ 180V _ GND _ HT _ -16.5V _ +16,5V _ ABL

TV SAMSUNG (FLAT / SLIM)
Flyback :
29" FUH29A001 (B+135V)
29" JF0501-91911 (B+125V)
29" FQH29A003 (B+125V) SLIM
21" FQH21A004 (B+120V/125V)
BSC25-0217G
AA26-00305A
FUH29A001B (S)
Pin out : COL _ NC _ B+125V _ NC _ 180V _ GND _ HT _ -16.5V _ +16.5V _ABL

TV SAMSUNG (Hitron Zoom Vision)
Flyback :
FSA 38026 S
Pin out : 16V _ 24V _ HT _ 46V _ 180V _ GND _ NC _ ABL _ B+125V _ COL

TV SAMSUNG
Flyback :
FSV 14A004
FSV 14A001
FCK 14A033
FTK-14A004P
FSV 20A001
Pin out : COL _ B+125V _ ABL _ NC _ GND _ 180V _ 24V/40V _ HT _ AFC _ 16.5V

Flyback :
FOK 14A001
FSV 14A004C
FSV 14A004H
FSA 38031M
FSA 173 B
AA26-002101
Pin out : +16.5V _ 24V _ HT _ -16.5V _ 180V _ GND _ NC _ ABL _ B+125V _ COL

Flyback :
FSV 14A001
FSV 20A001
FCK 14A033
FCV 20A001
Pin out : COL _ B+125V _ ABL _ NC _ GND _ 185V _ 46V _ HT _ NC _ 16.5V

Flyback :
FTK 14A004P
Pin out : COL _ B+125V _ ABL _ NC _ GND _ 180V _ 24V _ HT _ AFC _ 16.5V

Flyback :
FTK 14A004F(S)
Pin out : 16.5V _ 24V _ H _ -16,5V _ 185V _ GND _ NC _ ABL _ B+125V _ COL

Samsung, Blaupunkt
Flyback :
FCM 14A025
FCM 1411L01
Pin out : 16.5V _ AFC _ HT _ 24V _ 180V _ GND _ B+90V _ ABL _ 125VBOOST _ COL

Flyback :
DCF 2217 J
Pin out : COL _ B+ _ AFC _ Boost-Up _ 16.5V _ 24V _ ABL _ GND _ 200V _ HT

Flyback :
FCG 2045 BL
Pin out : AFC _ 16.5V _ HT _ Boost-Up _ B+83V _ GND _ NC _ C _ ABL _ 180V _ 24V

Flyback :
FCK 1411 L 01
FCM 14A025
Pin out : COL _ Boost-Up _ ABL _ B+ _ GND _ 180V _ 24V _ HT _ AFC _ 16.5V

Flyback :
FCK 14A006 (14")
FCM 2015HE (21")
FCM 14A032 (21")
FTK 21R002 (21")
KFS 60844A (21")
Pin out : COL _ B+ _ ABL _ 24V _ HT _ 15V _ 180V _ GND _ NC _ NC

SANKEN Television Color Flyback (FBT)

SANKEN
Flyback :
BSC24-01N4004U
JF0501-19959
BSC25-0235A
BSC25-N0103
Pin out : COL _ B+115V _ +14V _ -14V _ GND _ HT _ AFC _ ABL _ NC _ 180V

SANKEN
Flyback :
BSC 25-1194D030
FSV 20A099
Pin out : 16.5V _ 24V _ HT _ 46V _ 180V _ GND _ NC _ ABL _ B+125V _ COL

SANSUI Television Color Flyback (FBT)

SANSUI
Flyback :
JF 0501-1206
JF 0501-1204
Pin out : COL _ B+115V _ 180V _ 16V _ 24V _ HT _ GND _ ABL _ AFC _ NC

SANSUI
Flyback :
JF 0208-0210B
JF 0501-0501
Pin out : COL _ B+ _ 180V _ 14V _ 24V _ HT _ GND _ ABL _ AFC _ NC

SANYO Television Color Flyback (FBT)

TV SANYO SLIM Model CG21MS22
Flyback :
JF0501-32639
ILB4L40B11900
Pin out : COL _ B+115V _ NC _ 180V _ AFC _ ABL _ NC _ NC/Low-B _ HT _ GND

TV SANYO
Flyback :
BSC26-2670S
BSC26-2629S
Pin out : COL _ B+140V _ NC _ 185V _ AFC _ NC _ ABL _ Low B _ HT _ GND

TV SANYO (CG 14SP1G)
Flyback :
L40B14900
Pin out : COL _ B+115V _ NC _ NC _ AFC _ GND _ ABL _ NC _ HT _ GND

TV SANYO (CG 14SP1N)
Flyback :
L40B10602
Pin out : COL _ B+130V _ NC _ AFC _ GND _ HT _ ABL _ 180V _ X _ X

SANYO (SANYO SLIM)
Flyback :
21" L 40 B 15300
21" L 40 B 17100
21" JF0501-32639
Pin out : COL _ B+115V _ NC _ 180V _ AFC _ NC _ ABL _ LOW B _ HT _ GND

SANYO & SLIM FLAT 29"
Flyback :
BSC26-2629S PART NO : 1LB4L40B07500
BSC26-2670S PART NO : 1LB4L40808000 (FLAT)
1LB4L40B08000
L40B08000
Pin out : COL _ B+140V _ NC _ 180V _ AFC _ NC _ ABL _ LOW B _ HT _GND

SANYO FLAT 21" (CG21SF1T)
Flyback :
JF0501-32611
Pin out : COL _ B+125V _ NC _ 185V _ AFC _ NC _ ABL _ NC _ HT _ GND

SANYO
Flyback :
L40B17100
Pin out : COL _ B+ _ NC _ 180V _ AFC _ GND _ ABL _ NC _ HT _ GND

Flyback :
L40B09000
Pin out : COL _ B+ _ NC _ AFC _ GND _ HT _ ABL _ 16V _ NC _ 180V

Flyback :
L40B05500
Pin out : COL _ B+ _ NC _ AFC _ GND _ HT _ GND _ NC _ NC _ ABL

Flyback :
L40B09001
L40B10602
Pin out : COL _ B+ _ NC _ AFC _ GND _ HT _ ABL _ NC _ NC _ 180V

SHARP Television Color Flyback (FBT)

TV SHARP SLIM Piccolo 21ES253E2
Flyback :
BSC 25-0232K
Pin out : COL _ B+125V _ GND _ 26V/30V _ NC _ AFC _ 180V _ GND _ HT _ ABL

TV SHARP Alexander 21GFX200MK2
Flyback :
FA 122WJ-B
BSC 24-2688S
Pin out : COL _ B+125V _ GND _ 24V _ NC _ AFC _ 180V _ GND _ HT _ ABL

TV SHARP 14A1-A
Flyback :
BSC21-2610S
F0219PE-B
F0194 PEN 1-SA
Pin out : COL _ B+115V _ GND _ 40V _ 16V _ AFC _ 180V _ GND _ HT _ ABL

TV SHARP (Wonder/Universe 14U15, 20R200MKII, 51U200, 20W200, 20AG2-S)
Flyback :
F 0193 PEN1-SA
F 0194 PEN1-SA
F 2037 PE-B
Pin out : COL _ B+115V _ GND _ 40V _ 16V _ AFC _ 180V _ GND _ HT _ ABL

TV SHARP Model 51V200
Flyback :
FA061WJ-SA
Pin out : COL _ B+130V _ GND _ 24V _ 12V _ AFC _ 180V _ GND _ HT _ ABL

TV SHARP (PICCOLO)
Flyback :
BSC25-0232A
BSC26-2630S
BSC26-2631S
JF0501-32601
FA060WJ-SA
FA071WJ-A
FA104WJZZ
Pin out : COL _ B+130V _ GND _ 24V _ 12V/NC _ AFC _ 180V _ GND _ HT _ ABL

TV SHARP (Alexander)
Flyback :
BSC24-2688S
Pin out : COL _ B+130V _ GND _ 24V _ NC _ AFC _ 180V _ GND _ HT _ ABL

TV SHARP FLAT SLIM
Flyback :
BSC25-0224B
Pin out : COL _ B+125V/130V _ GND _ NC _ +14V _ -14V(AFC) _ 180V _ GND _ HT _ ABL

BSC25-0232K
JF0501-32636
Pin out : COL _ B+125V/130V _ GND _ 24V/NC _ +14V _ -14V(AFC) _ 180V _ GND _ HT _ ABL
Jika terjadi perubahan vertikal / horizontal masuk setting service mode dan atur.
Jika tegangan untuk vertikal kurang pas silahkan buat/lilit pada ferit FBTnya.

TV Sharp (X-Pression)
Flyback :
FA 094 WJ-SA
Pin out : COL _ B+130V _ GND _ 24V _ NC _ AFC _ 180V _ GND _ HT _ ABL

TV SHARP (New Qvision Personal)
Flyback :
FA 061 WJ-SA
Pin out : COL _ B+130V _ GND _ NC _ 24V _ AFC _ 180V _ GND _ HT _ ABL

TV SHARP QVISION (20S20B), TV SINGER (TVR-9600)
Flyback :
F0147 PE-M
Pin out : COL _ B+115V _ GND _ 24V _ 14V _ AFC _ 180V _ GND _ HT _ ABL

TV SHARP
Flyback :
BSC26-2630S
BSC26-2631S
Pin out : COL _ B+125V _ GND _ 24V _ 12V(NC) _ AFC(-12V) _ 180V _ GND _ HT _ ABL

SHARP (14S20MKII)
Flyback :
FA 060 WJ-SA
Pin out : COL _ B+ _ GND _ NC _ 12V _ (AFC/-12V) _ 185V _ GND _ HT _ ABL

SHARP (51X200)
Flyback :
F 094
FA 061WJ-SA
Pin out : COL _ B+130V _ GND _ 24V _ 12V _ AFC _ 185V _ GND _ HT _ ABL

SHARP (51DXF250E)
Flyback :
FA 122WJ-B
FA 113WJ-B
Pin out : COL _ B+130V _ GND _ 24V _ NC _ AFC _ 180V _ GND _ HT _ ABL

SHARP (14R20, 20R20B, 20R200, 51R200)
Flyback :
F0101KM-SA
F0102KM-SA
F0141PE-M
F094
F0147
F0147PE
FA061WJ-SA
FA060WJ-SA
FA093WJ-SA
FA135
BSC-250216F
Pin out : COL _ B+115V _ GND _ 24V _ 16V _ AFC _ 180V _ GND _ HT _ ABL

SHARP (20Q250)
Flyback :
F 0122 PE-M
Pin out : COL _ B+ _ 24V _ 16V _ NC _ AFC _ GND _ HT _ 180V _ ABL

SHARP 29"
Flyback :
FA100WJ
FA116WJ
Pin out : COL _ B+125V _ GND _ NC _ +14V _ -14V _ 180V _ GND _ HT _ ABL

TV SHARP
Flyback :
F0229PE
FA061WJ-SA
BSC21-2037S
BSC21-2647S
BSC21-2651S
Pin out : COL _ B+130V _ GND _ 24V _ 12V _ AFC _ 180V _ GND _ HT _ ABL

Flyback :
BSC25-0216F
FA135WJZZ
FA143WJ
Pin out : COL _ B+130V _ GND _ 24V _ 16V _ AFC _ 180V _ GND _ HT _ ABL

Flyback :
FA011WJ-B
Pin out : COL _ B+130V _ GND _ 24V _ 16V _ AFC _ 180V _ NC _ HT _ABL

Flyback :
FA 011 WJ-B
Pin out : COL _ B+130V _ GND _ 24V _ 16V _ AFC _ 180V _ NC _ HT _ ABL

Flyback :
F0067PE
F0069PE
Pin out : COL _ B+115V _ 24V _ 16V _ NC _ AFC _ GND _ HT _ 180V _ ABL

Flyback :
F094
FA601 WJ-SA
Pin out : COL _ B+130V _ GND _ 24V _ 12V _ AFC _ 185V _ GND _ HT _ ABL

Flyback :
F 0063PE-M
F 0067PE-M
Pin out : COL _ B+ _ 24V _ 12V _ NC _ AFC _ GND _ HT _ 185V _ ABL

Flyback :
F 0042PE-M
Pin out : 15V _ COL _ 24V _ B+ _ ABL _ AFC _ GND _ NC _ 180V _ HT

SONY Television Color Flyback (FBT)

SONY TRINITRON 29"
Flyback :
1-439-423-32
Pin out : H1 _ H2 _ 180V _ B+ _ COL _ 14V _ ABL _ NC _ 26V _ NC _ GND

SONY (KV-LS21M61)
Flyback :
8-597-041-20
Pin out : COL _ B+ _ 200V _ H _ GND _ (-13V) _ GND _ (+13V) _ NC _ ABL

TV SONY
Flyback :
8-598-858-00
8-598-831-00
8-598-838-00
8-598-811
1-453-284-11
Pin out : COL _ B+ _ 180V _ HT _ GND _ -13V/-16,5V _GND _ +13V/+16,5V _ NC _ ABL

TOSHIBA Television Color Flyback (FBT)

TV TOSHIBA 21LZE28
Flyback :
BSC23-N018C
TFB4231AG
TF-0144-OJG
Pin out : COL _ B+115V _ 180V _ GND _ NC _ 24V _ 14V _ ABL _ HT _ AFC

TV TOSHIBA
Flyback :
TFB 4125 DY
TFB 4125 HY
14" TFB 4067 BD
20" TFB 4122 BD
20" TFB 4122HY
21-25" TFB 4125 CH
21" TFB 4213AG (FLAT)
29" TFB 4129
29" TFB 4086A
Pin out : COL _ B+115V _ 180V _ GND _ NC _ 24V _ 12V _ ABL _ HT _ AFC

TOSHIBA
Flyback :
TFB 4067BD
TFB 4125CH
TFB 4122HY/ES/CS/DY
BSC 23-N0102
Pin out : COL _ B+ _ 185V _ GND _ NC _ 24V _ 12V _ ABL _ HT _ AFC

Flyback :
FSV-20A001
FCK-14A033
FSV-14A001
Pin out : COL _ B+125V _ ABL _ NC _ GND _ 180V _ 48V _ HT _ NC _ 16.5V

Flyback :
FSA 16012M
DCF 20077A
DCF 1577
Pin out : COL _ B+ _ AFC _ BOOST-UP _ 16.5V _ ABL _ 25V _ GND _ 180V _ HT

TCL Television Color Flyback (FBT)

TV TCL
Flyback :
21" BSC25-0299D
21" BSC25-0273F
21" BSC25-0284C
21" JF0501-1914V1
BSC25-0231
BSC25-0211
BSC 66G (124-3810)
JF0501-1909A
JF0501-1214
Pin out : 180V _ COL _ AFC _ B+115V _ 12V _ 24V _ ABL _ GND _ NC _ HT

Flyback :
BSC25-0252S
Pin out : COL _ B+ _ NC _ NC _ NC _ AFC _ GND _ ABL _ 180V _ HT

Flyback :
JF0501-1619
BSC25-0299D,
Pin out : 185V _ COL _ AFC _ B+ _ 16V _ 24V _ ABL _ GND _ NC _ HT

Lain Lain TV Flyback (FBT)

Flyback :
FCG 2045 BL
Pin out : AFC _ 16.5V _ HT _ Boost-Up _ B+83V _ GND _ NC _ C _ ABL _ 75V _ 24V

Flyback :
HTF2904
Pin out : C _ B+ _ 24V _ 16V _ GND _ HT _ GND _ AFC _ NC _ 180V

Flyback :
FSA 16012M
DCF 2077A
DCF 1577
FSA 16012M
Pin out : C _ B+ _ AFC _ Boost-up _ 16.5V _ ABL _ 25V _ GND _ 185V _ HT

Flyback :
JF 0501-1206
Pin out : C _ B+ _ 180V _ 16V _ 25V _ HT _ GND _ ABL _ AFC _ NC

Flyback :
K 148 TC
Pin out : C _ 180V _ B+ _ GND _ AFC _ 16V _ ABL _ HT _ NC _ NC

Flyback :
MC FBC-015
LCE CF0854
Pin out : Col _ B+ _ GND _ AFC _ 185V _ HT _ 25V _ 15V _ GND _ ABL

Untuk kumpulan artikel mengenai electronic dan service silahkan kunjungi halaman : Electronic Service

Ada Kurang Lebihnya Saya Minta Maaf
Semoga Bermanfaat Untuk Sobat Tuser Semua
